How AutoED works

The figure below shows the basic AutoED workflow. Data is captured on an eBIC microscope and transferred to the Diamond filesystem (together with accompanying metadata). The AutoED monitors the Diamond filesystem, detects a new dataset, analyzes it (determines beam center), converts it to Nexus format, and (in the end) processes it using xia2.

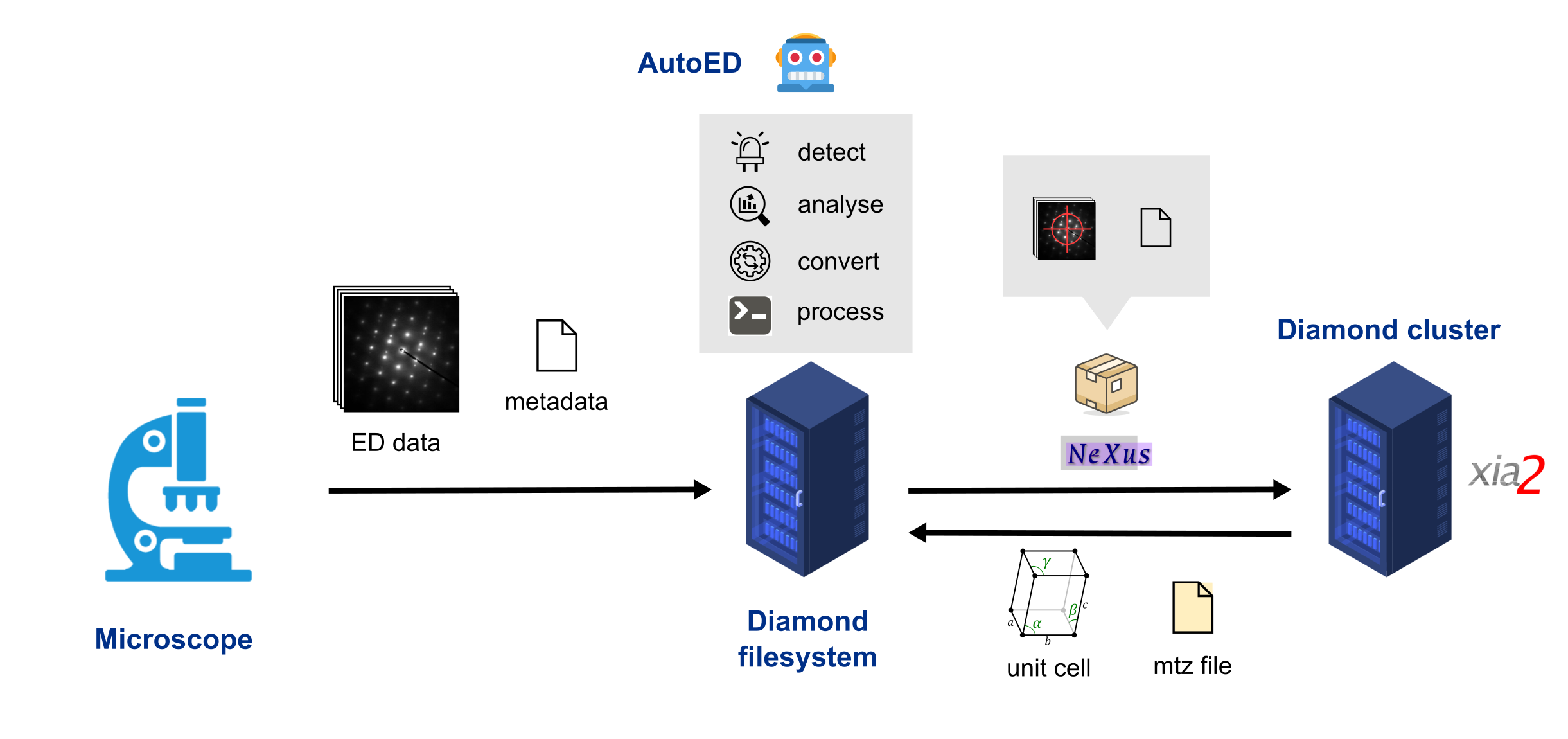

The AutoED workflow

Fig. 1 The AutoED workflow: the data can be processed remotely on the Diamond cluster (as shown in the figure) or locally on the same machine running AutoED. See option local in the configuration file for more details.

What makes a dataset?

A dataset consists of several files. By default, the Singla detector writes at least two HDF5 files: a data file (e.g., 20250522_nav15_data_000001.h5) and a master file (e.g., 20250522_nav15_master.h5). The file names include a basename (e.g., 20250522_nav15) and an extension (e.g., _master.h5, or _data_000001.h5). The basename is usually a combination of metadata, like the date and time the data is collected. From now on, we will write basename instead of its actual value. Besides these two files, in our setup, the detector produces an additional metadata file (e.g., basename.json). This metadata file contains all the information necessary to populate the Nexus file that AutoED generates (e.g., basename.nxs). An example of an JSON metadata file is given below

{
 "voltage": 200.0,
 "wavelength": 0.02507934052490744,
 "rotation_speed": "1",
 "start_angle": -60.0,
 "frame_rate": 2.0,
 "angle_increment": 0.5,
 "detector_distance": 1759.5,
 "sample_type": "macro",
 "unit_cell": null,
 "space_group": "P1"
}

AutoED will consider a dataset complete (and process it) only when all three files (a data file, a master file, and a metadata file) are present in the same directory. The data file is usually large, and it takes some time to get copied from the microscope to the Diamond filesystem. To prevent data processing before the file is entirely copied, the AutoED relies on a trigger file. When the microscope finishes writing a dataset, it writes a trigger file in the same directory. The AutoED waits for this file to appear, and then searches for master files in that directory. If there are several datasets in a directory, creating (or modifying) a trigger file in that directory will trigger the processing of all datasets in that directory. The search also works recursively on all subdirectories of a directory where the trigger file appeared.

Additionally, data will only be processed if it’s inside a data root directory. In our case, the data root directory is called ED. The data organization inside the root (ED) directory is left to the user. You can group your data and have as many subdirectories as you like. However, AutoED makes some assumptions about how data is organized when it processes combined datasets of a single sample using xia2 multiplex. More info can be found on the page about multiplex.

Testing it out

Here is a simple example of how to test if AutoED is working. We will trigger processing ourselves (instead of waiting for the microscope to do it). Assume some diffraction images are saved in /home/some_user/diffraction/ED/dataset_01. If we list this directory, we get a single dataset.

ls /home/some_user/diffraction/ED/dataset_01
  20240522_1235_nav17_data_000001.h5
  20240522_1235_nav17_master.h5
  20240522_1235_nav17.json

First, we start the AutoED daemon, and we start watching the diffraction directory

autoed start
autoed watch /home/some_user/diffraction

Next, we trigger the processing by creating a trigger file (a hidden file called .HiMarko). The name of the trigger file can be changed in the global configuration file (see more about that in the section about configuring AutoED).

touch /home/some_user/diffraction/ED/dataset_01/.HiMarko

The AutoED will search the dataset_01 directory, find the master file, derive the dataset name from the master file, check if data and metadata files are present, and then process our dataset. If we list the same directory after processing we should see something like this

ls /home/some_user/diffraction/ED/dataset_01
  20240522_1235_nav17_data_000001.h5
  20240522_1235_nav17_master.h5
  20240522_1235_nav17.json
  20240522_1235_nav17.autoed.log
  20240522_1235_nav17.nxs
  ...

AutoED generated a Nexus file, a local log file, a figure showing the computed beam position, etc. If we list the diffraction directory, we get

ls /home/some_user/diffraction
  autoed_report
  processed
  ED
  ...

There is the processed directory where AutoED keeps the results of xia2 processing, and the autoed_report directory with the summary of processing statistics. If you process more datasets, you might also see a multiplex directory.

A single dataset is processed several times through the so-called pipelines. A pipeline is just a sequence of DIALS or xia2 commands with different options. For example, there is a pipeline that checks if there are multiple lattices in the sample or a pipeline that checks if the sample is an ice crystal. The output from all pipelines is saved in the processed directory. For the dataset we processed above, the output for the default pipeline would be in /home/some_user/diffraction/processed/dataset_01/default. Predefined pipelines can be found and modified in the global configuration file.

Important

By default, AutoED is set to run on a Diamond server and submit jobs to the Diamond cluster using SLURM REST API. If you use AutoED outside of Diamond, you can set it to run in local mode (without submitting jobs to SLURM). The option local needs to be set to true in your local configuration file. Otherwise, AutoED will probably not work on your system. See how to configure AutoED for more information. When running in the local mode, each pipeline is run serially (in a sequence), whereas when running with SLURM (on the cluster), pipelines are processed in parallel. Therefore, running in the local mode can be slower, and you should consider reducing the number of active pipelines to speed up the processing.
